經濟型虛擬光功率計
經濟虛擬光功率計
兼容光電二管探測器和18P系列熱電堆探測器
小巧的外形理想選擇
虛擬功率計易于使 用且足夠直觀，在幾分鐘內即可掌握。功率計內包括一根USB電纜，用于連接您的PC 或筆記本電腦，并為本機提供電源。
軟件的內置功能包括一個完整的統計軟件包，可以讓您在線形圖和直方圖中進行選擇。使用同一塊屏幕，用戶可以設置數據采樣參數。能夠輕易從測量干擾中恢復。例如，可以取消統計緩沖區內的后一個值或后一個時間點，使您無需停止工作即可繼續使用。同樣提供保存數據、保存統計結果或保存兩者等諸多選項。
測量儀裝配有DB15 輸入連接器，實現高功率探測器。
|
|
1 mW to 10 kW |
|
Analog Output |
0-2 V full scale, mono audio 1/8" jack |
|
Accuracy () |
±0.5 % Full Scale |
|
Dimensions () |
3.4 x 2.3 x 1.2 (86 x 58 x 27) |
|
Weight () |
0.23 (0.106) |
選配探頭（表1）：
|

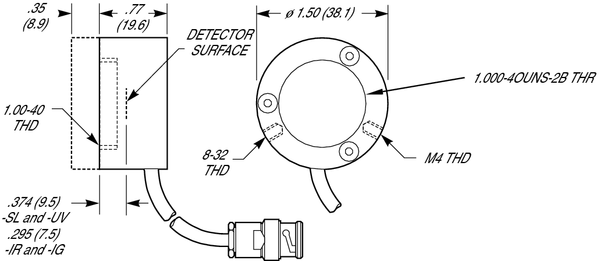

818IG |
InGaAs Detector, 800-1650 nm, DB15 Calibration Module |
|
818IR |
Germanium Detector, 780-1800 nm, DB15 Calibration Module |
|
818SL |
Silicon Detector, 400-1100 nm, DB15 Calibration Module |
|
818UV |
UV Detector, 200-1100nm, DB15 Calibration Module |
選配探頭（表2）：
|
貨號 |
概述 |
|
918DIG1IR |
探頭InGaAs Detector,光譜 800-1650 nm, OD1 Attenuator, DB15 |
|
918DIG2IR |
探頭InGaAs Detector, 光譜800-1650 nm, OD2 Attenuator, DB15 |
|
918DIG3IR |
探頭InGaAs Detector, 光譜800-1650 nm, OD3 Attenuator, DB15 |
|
918DG1IR |
探頭Germanium Detector, 光譜780-1800 nm, OD1 Attenuator, DB15 |
|
918DG2IR |
探頭Germanium Detector, 光譜780-1800 nm, OD2 Attenuator, DB15 |
|
918DG3IR |
探頭Germanium Detector, 光譜780-1800 nm, OD3 Attenuator, DB15 |
|
918DSI1VIS |
探頭Silicon Detector, 光譜400-1100 nm, OD1 Attenuator, DB15 Connector |
|
918DSI2VIS |
探頭Silicon Detector, 光譜400-1100 nm, OD2 Attenuator, DB15 |
|
918DSI3VIS |
探頭Silicon Detector, 400-1100 nm, OD3 Attenuator, DB15 |
|
918DUVSI3 |
探頭UV Silicon Detector, 200-1100 nm, OD3 Attenuator, DB15 |
選配探頭（表3）
|
貨號 |
參數描述 |
|
818IR |
探頭818 Ge Metal Wand Detector, 光譜780-1800 nm,OD3 Attenuator, 接口DB15 |
|
818UVSI |
探頭818 UV Metal Wand Detector, UV-Silicon,光譜 200-1100 nm, OD3, 接口DB15 |
|
818SI |
探頭818 Si Metal Wand Detector, 光譜400-1100 nm, OD3 Attenuator, 接口DB15 |
|
918DIR |
探頭Wand Style Germanium Photodetector, 光譜780-1800 nm, OD3 Attenuator,接口 DB15 |
|
918DIR |
探頭Wand Style Silicon Photodetector, 光譜400-1100 nm, OD3 Attenuator,接口 DB15 |
|
918DUVSI |
探頭918D UV-Si Wand Detector, 光譜200-1100 nm, OD3 Attenuator, 接口DB15 |
選配探頭（表4）：
|
貨號 |
描述 |
|
819DIR2 |
積分探頭Integrating sphere detector, diverging beam, 尺寸2", 910-1650 nm |
|
819DIR3.3 |
積分探頭Integrating sphere detector, diverging beam, 尺寸3.3", 光譜910-1650 nm |
|
819DIR5.3 |
積分探頭Integrating sphere detector, diverging beam, 尺寸3.3", 光譜910-1650 nm |
|
819DIR3.3 |
積分探頭Integrating sphere detector, diverging beam, 尺寸3.3", 光譜910-1650 nm |
|
819DIR3.3 |
積分探頭Integrating sphere detector, diverging beam, 尺寸3.3", 光譜910-1650 nm |
|
819DIR3.3 |
積分探頭Integrating sphere detector, diverging beam, 尺寸3.3", 光譜910-1650 nm |
|
819DIR3.3 |
積分探頭Integrating sphere detector, diverging beam, 尺寸3.3", 光譜910-1650 nm |
|
819DIR3.3 |
積分探頭Integrating sphere detector, diverging beam, 尺寸3.3", 光譜910-1650 nm |
選配探頭（表5）：
|
貨號 |
描述 |
|
819CIR2 |
Integrating sphere detector, collimated beam, 2", 800-1650 nm |
|
819CIR3.3 |
Integrating sphere detector, collimated beam, 3.3", 910-1650 nm |
|
819CIR5.3 |
Integrating sphere detector, collimated beam, 5.3" sphere , 860-1650 nm |
|
819CIR2N |
Integrating sphere detector, collimated beam, 2", 400-1100 nm |
|
819CIR3.3N |
Integrating sphere detector, collimated beam, 3.3", 400-1100 nm |
|
819CIR5.3N |
Integrating sphere detector, collimated beam, 5.3", 400-1100 nm |
|
819CUVVIS2 |
Integrating sphere detector, collimated beam, 2", 200-1100 nm |
|
819CUVVIS5.3 |
Integrating sphere detector, collimated beam, 5.3", 220-1100 nm |
