405nm拉曼激光器

405nm拉曼激光器

NBET-III-400/405/410/415

VIOLET DIODE LASER AT 400/405/410/415nm

Violet diode laser module at 400/405/410/415nm is made features of ultra compact, long lifetime, low cost and easy operating, which is used in measurement, communication, spectrum analysis, etc.

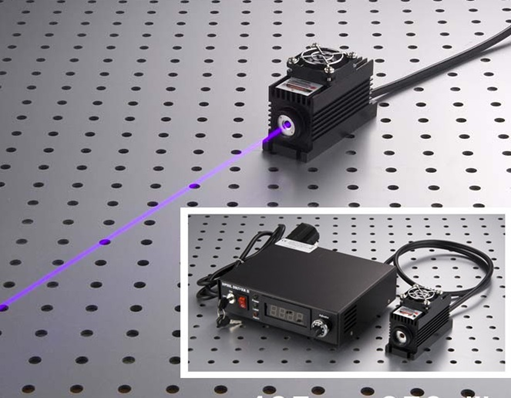

產品圖片

技術參數

Model	NBET-III-400	NBET-III-405		NBET-III-410	NBET-III-415
Wavelength (nm)	400±5	405±5		410±5	415±5
Operating mode			CW
Outputpower(mW)	>1,2,3, …,300	>1, 2, 3, …,500		>1, 2, 3, …,300	>1, 2, 3, …,300
Power stability (rms, over 4 hours)			<1%, <3%, <5%
Transverse mode			Near TEM00
M2 factor			<1.5 (<1.2, optional)
Beam diameter at the aperture (1/e2,mm)			~2.5 (~1. 0, optional)
Beam divergence, full angle (mrad)			0.5
Polarization ratio			>50:1(>100:1,optional)Horizontal±5degree(VerticalOptional)
Warm-up time (minutes)			<5
Pointing stability after warm-up (mrad)			<0.05
Beam height from base plate (mm)			24.8
Operating temperature (℃)			10~35
Power supply (85-264VAC)			PSU-III-LED/ PSU-III-FDA
TTL / Analog modulation			TTLorAnalogwith1Hz-1KHz1KHz-10KHz,10KHz-30KHzoptional
Expected lifetime (hours)			10000
Warranty			1 year

選型指南

NBET-FN-360nm	360nm半導體激光器，數顯可調。
NBET -III-400/405/410/415nm	400nm半導體激光器，數顯可調。
NBET-III-532nm	532nm半導體激光器，數顯可調。
NBET-F-532nm	532nm半導體激光器，數顯可調。
NBET-FN-532nm	532nm半導體激光器，數顯可調。
NBET-D-785nm	785nm半導體激光器，數顯可調。
NBET-III-1064nm	1064nm半導體激光器，數顯可調。

上一篇：360nm拉曼激光器
下一篇：532nm拉曼激光器
