主要應用

高能二管泵浦，全固態(tài)，　Q-SWITCHEDLASER

高能二管泵浦固體，　q開關激光在1064 nm的特性

　單脈沖能量高、短脈沖，時間和峰值功率高,

　廣泛用于PIV、生活,庫,icp，科學研究、激光加工、軍事、等等。

產品特點

用于透明固體物質LIBS光譜檢測的激光器。具有窄脈寬、高單脈沖能量等特點。

窄脈寬、高能量，可以有效擊穿各類氣體，適用于氣體及液體樣品LIBS光譜檢測

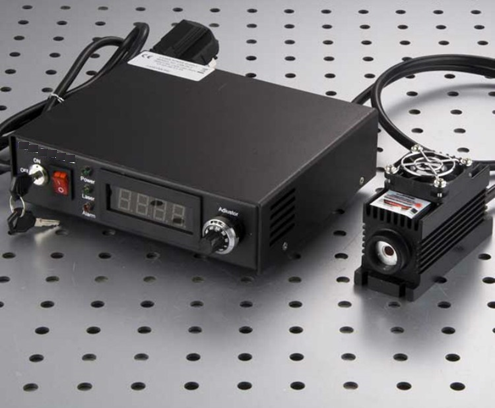

1064 LIBS激光器

（100UJ~100MJ）

NBET-S-1064/1~350μJ/1~2500Mw

LD PUMPED ALL-SOLID-STATE ACOUSTO-OPTIC Q-SWITHED LASER AT 1064 nm

All solid state acousto-optic Q-switched laser at 1064 nm has the features of high peak

power, high repetition rate, and short pulse duration, which is widely used in material processing，

 measure, scientific research and so on.

技術參數

Wavelength (nm)      1064±1

Single pulse energy (μJ) (350μJ @1kHz; 180μJ @10kHz)

Operating mode    ectro-optics Q-switched

Rep. rate (kHz) 0.1~100

Pulse duration Typically7~11ns @<10kHz, varies from power and repetition.

Average power (mW) Average power (mW)= Single pulse energy (μJ)* Rep. rate(kHz)

Power Stability (rms,over 4 hours) <3%,<5%,<10%

Transverse modeTEM00

M²<1.5

Beam Diameter at the aperture 1/e2 (mm) ~0.4 ~1.3 (optional)

Beam divergence, full angle (mrad) <5.0<1.5 (optional)

Polarization ratio>100:1 Horizontal±5 degree

Warm-up Time (minutes)<10

Beam height from base plate (mm)25

Operating temperature(℃) 10~35

Power supply (90-264VAC) PSU-NBETM-DL

Expected lifetime (hours) 10000

Warranty1 year

選型指南
