氙燈光源
當前位置:主頁>氙燈光源>XE100 100W氙燈光源 (推薦高校 光譜測試、太陽能模擬器 進口光源)

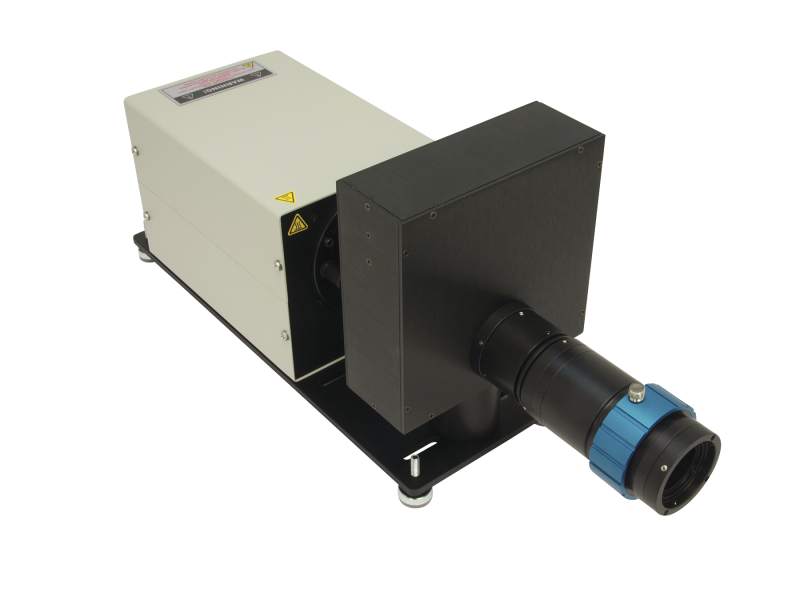

XE100 100W氙燈光源 (推薦高校 光譜測試、太陽能模擬器 進口光源)

XE100 100W氙燈光源 (推薦高校 光譜測試、太陽能模擬器 進口光源)




100W氙燈光源采用無臭氧氙燈(6002)作為照明光源,氙燈光譜覆蓋紫外、可見和近紅外,和太陽光譜其近似,廣泛作為太陽能模擬器。因高功率、寬譜輸出而受吸收和熒光激發等歡迎。光譜范圍260nm以上,無臭氧。

The XE100 uses the 6002 100 W Ozone Free Xe lamp as its illumination source. Xe arc lamps produce a spectral output curve that is almost featureless in the UV and NIR regions, with characteristic Xe lines emitted from 750-1000 nm. Due to their sun-like emission spectrum, Xe lamps are widely used for solar simulation applications. Their high intensity, broadband output also make them popular excitation sources for absorbance and fluorescence applications. The 6002 is an Ozone Free Xe lamp, useful for applications that do not require wavelength emission below 260 nm and features an ellipsoidal reflector to maximize light throughput throughout the 100 W Xe Light Source.

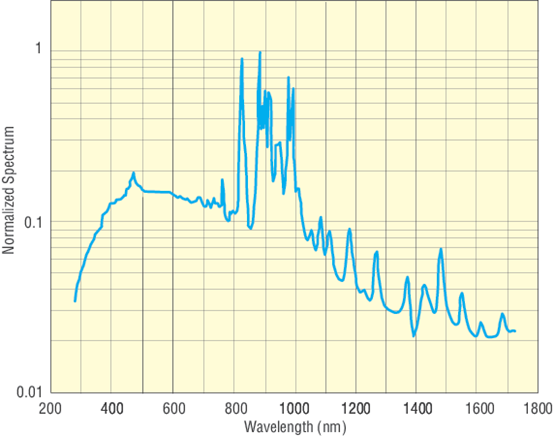

光譜曲線(Spectra):

主要特點:

簡單光學耦合

完全集成、即插即用

光強可調

手動光開關

Features

Easy Optical Coupling

Fully Integrated, Plug and Play System

Adjustable Lamp Intensity

Manual Shutter



技術參數(Technical Specs

燈泡類型(Lamp Type)Xe, Ozone Free

燈泡功率(Lamp Wattage):100 W

光斑直徑(Output Beam Size):33 mm

燈泡壽命(Average life):1000 h

發散角Beam Divergence,Half Angle4.0 ± 0.5 °

F/#F/4

透鏡材料(Lens Material):Fused Silica

光譜范圍(Spectra Range):260-2500 nm

光波動(Light Ripple):<0.2 % rms

線性(Line Regulation):001

輸入(Power Requirements): 200-240 VAC, 50/60 Hz

濾光片片尺寸(Filter Size:25.4 mm

濾光片輪(Filter Wheel):Six Positions (Order Filters Separately)

操作溫度(Operating Temperature):5 to 40 °C



操作適度(Operating Humidity):<80% relative humidity (non-condensing)



光學開關:

光學開關用于關閉光路,不需要光照時保護使用人員免受紫外線輻射,比如:預熱光源、安裝光學元件,無需頻繁開關光源。

Manual Shutter

A manual shutter is integrated into the THL100 to allow the user to close off the light path, blocking any light output from the system. This allows the user to be protected from UV radiation when light output is not required, such as warming up the lamp while preparing a setup or making a minor change in setup, without frequent and unnecessary restarts of the lamp.



六檔濾光片輪:

六檔濾光片輪,可以安裝1-6個不同濾光片,直徑25.4mm1英寸),便于濾光片。

Integrated Six Position Filter Wheel



A filter wheel is integrated into the assembly of the THL100. Up to six order-sorting or neutral density filters can added (1.0 in or 25.4 mm diameter, 0.2 in. or 6 mm thickness) and filters can be changed.



360°光路轉向器

360°旋轉,鍍ALMgF2增反膜,光譜范圍200-2500nm,用于寬譜輸出。

Full Reflector Beam Turning Mirror, 200-20,000 nm



The Full Reflector Beam Turning Mirror is are coated with an AlMgF2 coating optimized to increase reflectivity in the ultraviolet. It is useful from 200 nm to 30 μm spectral range. Use it when broadband output is needed.


上一篇:簡易型氙燈光源
下一篇: XE300WF光催化氙燈光源
